BOILER TUBES

PRODUCTS | BOILER TUBES
BOILER TUBES
Tubacex tube manufacturing range covers all main grades used for heat corrosion and oxidation resistance applications. Stainless and nickel grades are traditionally used in reheater and superheater though they may also be required in other parts of the plant.
The use of stainless and nickel heat resistance materials in RH an ST has proven to be far superior over ferritic steels in high temperature corrosion and oxidation environments.
Their outstanding properties make them the correct choice for our customers when searching for materials in advanced equipments.

Devoted to low emission technologies

Our metallurgical engineers are devoted to the development of sophisticated steels capable of operating in the demanding environments of the future.
Tubacex has signed collaboration agreements with leading R&D laboratories and main Industry Associations in order to participate in the next generation of Power of plants at 700ºC which Ni reduce significantly plants emmissions.
“24,000 tons of premium tubes delivered for advanced equipments”

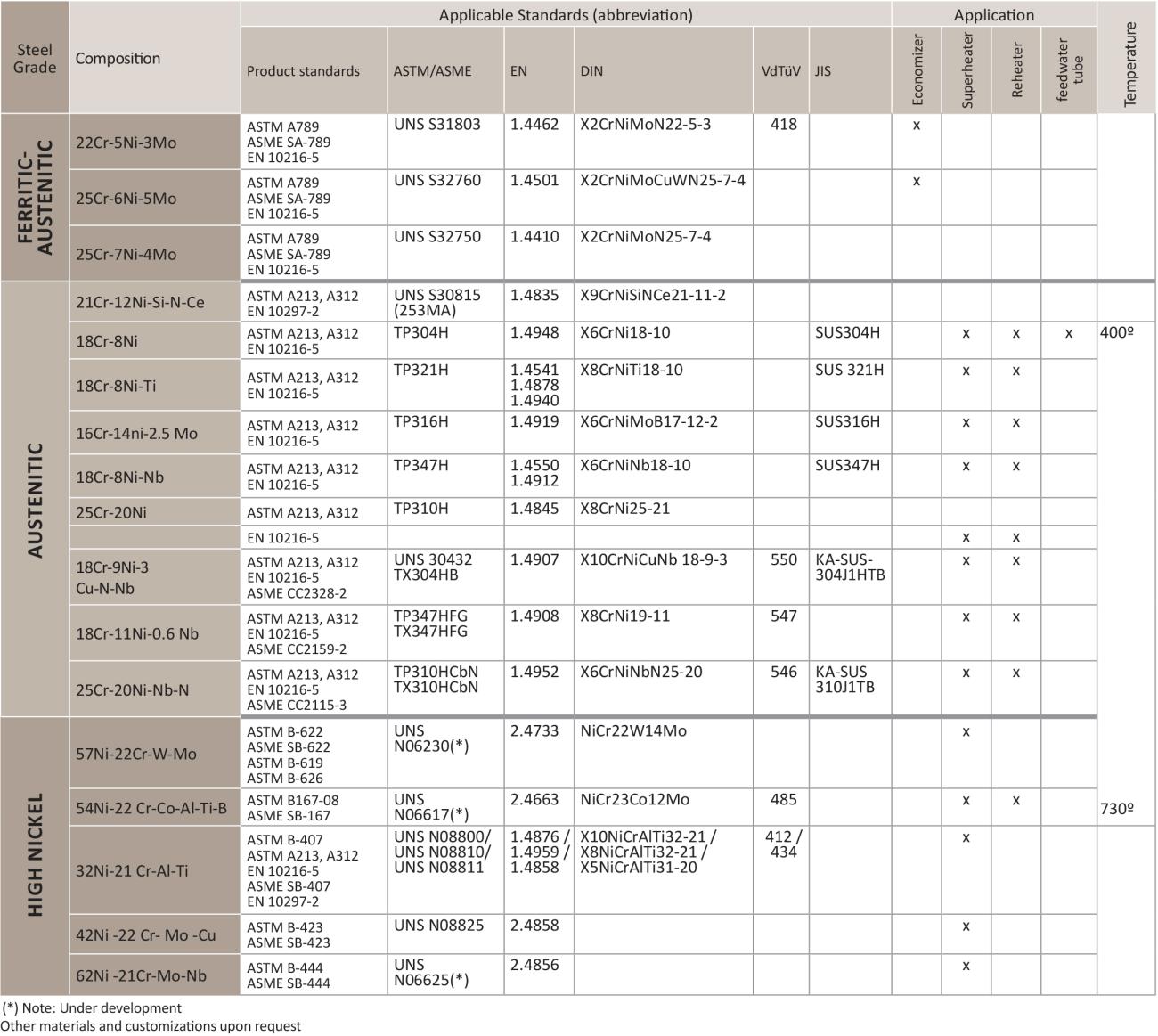

Grades and Equivalencies

Equivalent grades according to national and international standards

The main characteristics of stainless steels are:

  • High creep rupture strength
  • Good resistance to fire side corrosion

Nickel based Materials improve the material properties at high temperatures:

  • Higher creep rupture strength
  • Lower thermal expansion than stainless grades
  • Resistance to Thermal fatigue
  • Oxidation and corrosion behavior

Boiler tubes Size range & Tolerances

Boiler tubes Size range & Tolerances




The Tubacex Group has extensive manufacturing program for seamless stainless and nickel steel tubes for its application in boiler equipments.

Tubacex manufactures boiler tubes at an outside diameter from 38.1 to 76.2 mm according to international manufacturing standards.

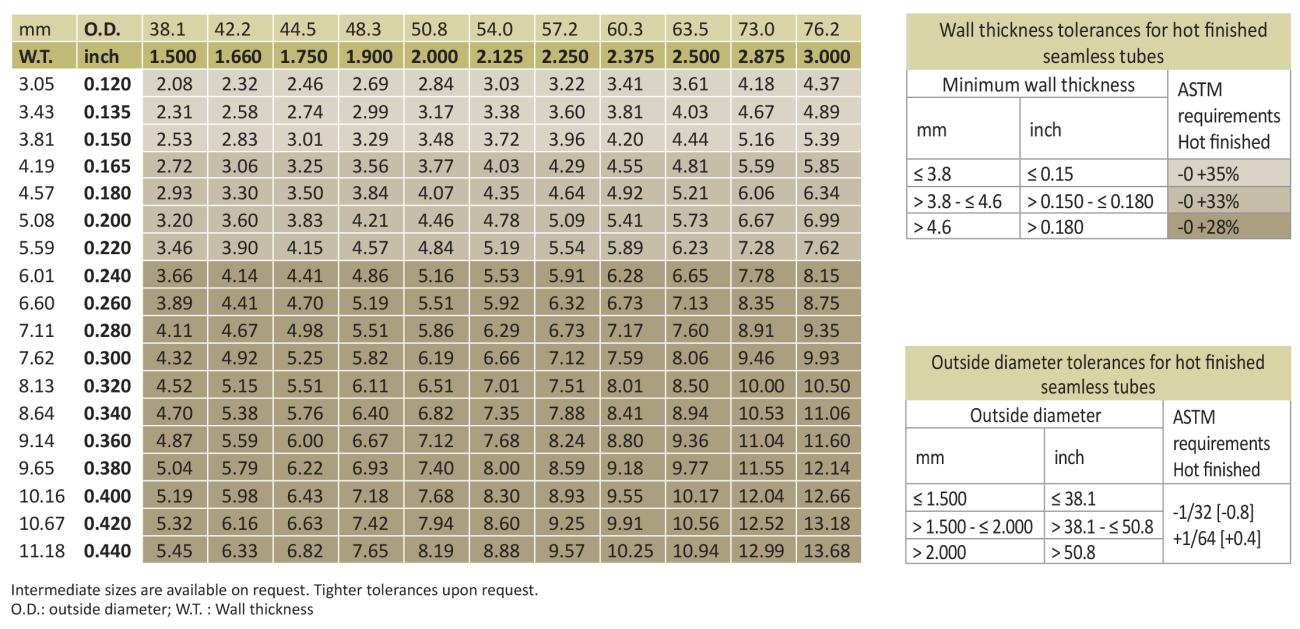

ASTM A213 Hot finished (lb./ft.)

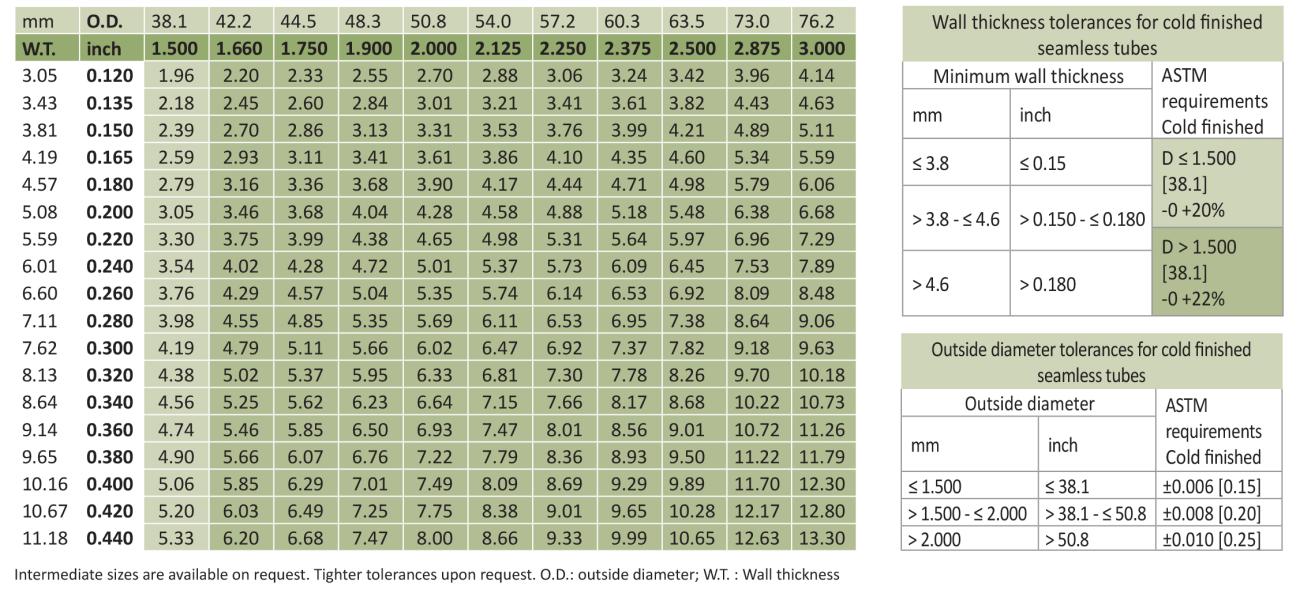

ASTM A213 Cold finished (lb./ft.)


The largest stainless and Nickel size range in the market

Our customers will benefit of the largest size range in the market in these steel grades starting from 6mm OD up to 72”

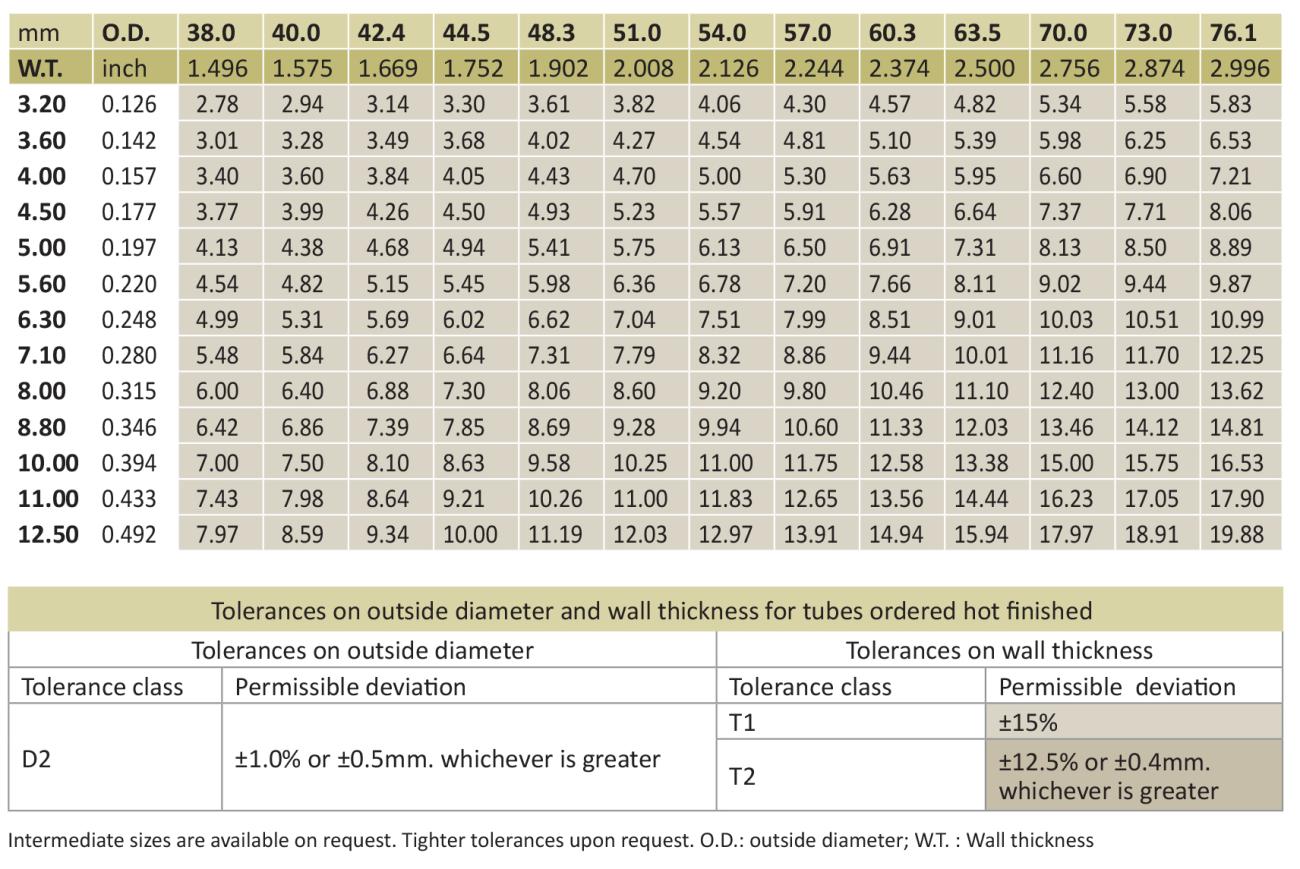

EN 10216-5 Hot finished (kg./m.)

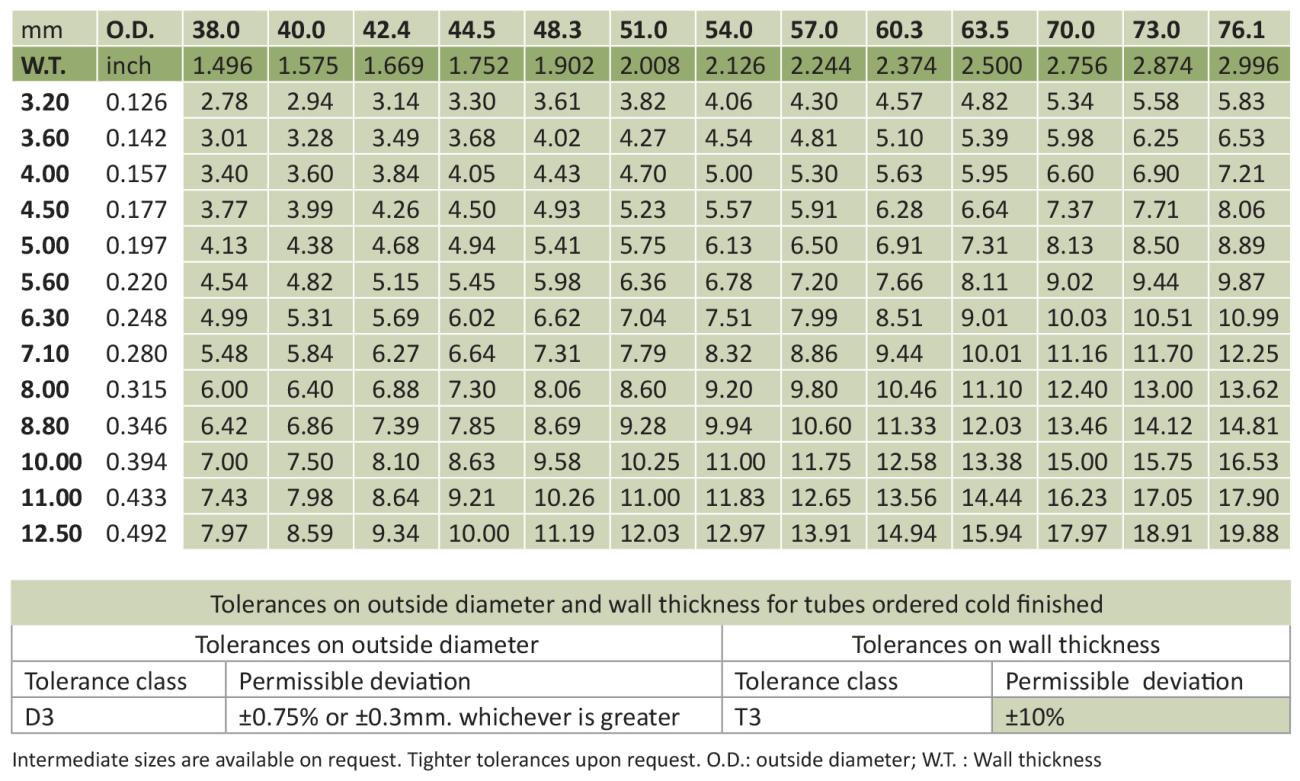

EN 10216-5 Cold finished (kg./m.)
