Dimensional Range

PRODUCTION | DIMENSIONAL RANGE

Dimensional range

Tubes, pipes and Hollow bars

Our product range in the whole tubacex group encompasses

outer diameters from 3 up to 250 mm (0.12 up to 9.84 inches) from extrusion. Up to 72 inches through mechanical boring.
wall thicknesses from 0.5 up to 50 mm (0.02 up to 1.97 inches). Any wall thickness in mechanically bored tubes.

Seamless Stainless Steel cold finished tubes and pipes from 6 mm OD to 273.1 mm OD, up to 28 m (length),

TUBACEX TUBOS INOXIDABLES, S.A.U. (TTI)

Seamless stainless steel and nickel alloy tubes and pipes. The size manufactured through the extrusion press and the 10 cold rolling machines, goes from ½” up to 8” NPS, or 19 – 250 mm OD.

SCHOLLER BLECKMANN EDELSTAHLROHR, GMBH (SBER)

Seamless stainless steel pipes and tubes in dimensions between 1/8” and 8” NPS, or 6 – 250 mm OD.

IBF S.P.A.

Mechanically bored tubes up to 72'' in any wall thickness.

SALEM TUBE INC.

Welded redrawn and seamless stainless steel and high nickel alloy tubes. Their range goes from 1/8” to 2” OD.

outer diameters from 38 up to 250 mm
wall thicknesses from 3,05 up to 50 mm

Cold Pilgering and Cold Drawing

outer diameters from 3 up to 219.1 mm (0.12 up to 8.63 inches)
wall thicknesses from 0.5 up to 50 mm (0.02 up to 1.97 inches).

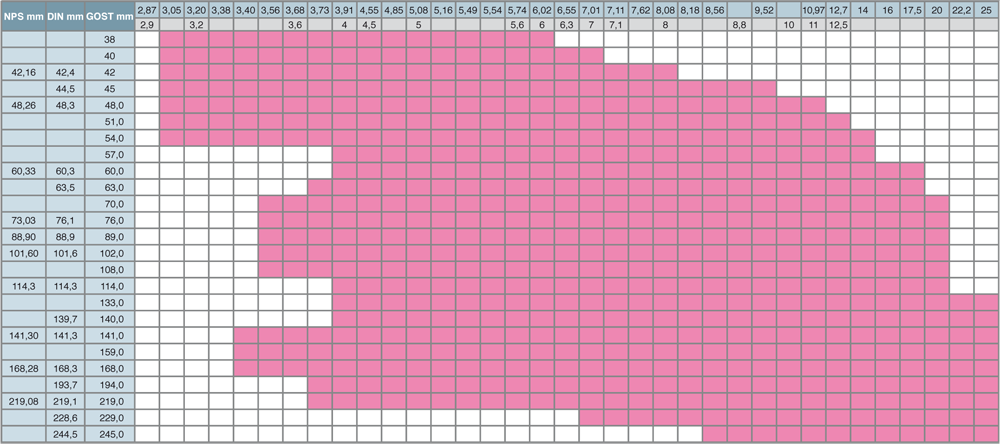

View graphic

(Hot Extruded Tubes)

Download

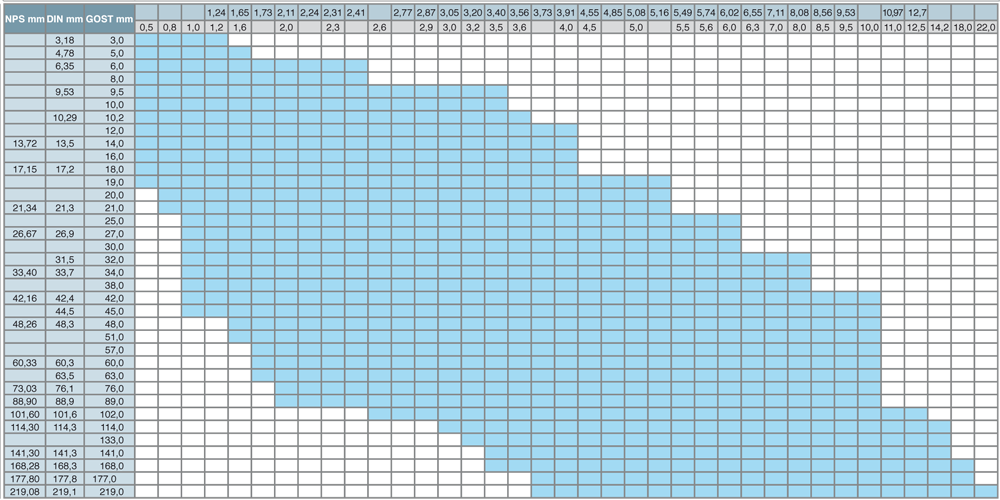

View graphic

(Cold Pilgering and Cold Drawing)

Download

Bars, Billets and Ingots

Aceralava also supplies its products to the stainless steel market.
The dimension of the billets and bars goes from 120 mm up to 500 mm.

SQUARE (Rolled) 120 mm to 200 mm
SQUARE (Forged) 200 mm to 500 mm
ROUND (Rolled) 170 mm to 200 mm
ROUND (Forged) 200 mm to 500 mm

Fittings

range TTA and IBF goes from ½” up to 72” NS, in short and long radius.
